Valve Cover Gasket

Art Lischer alisch80 at
Mon May 28 11:02:13 PDT 2007

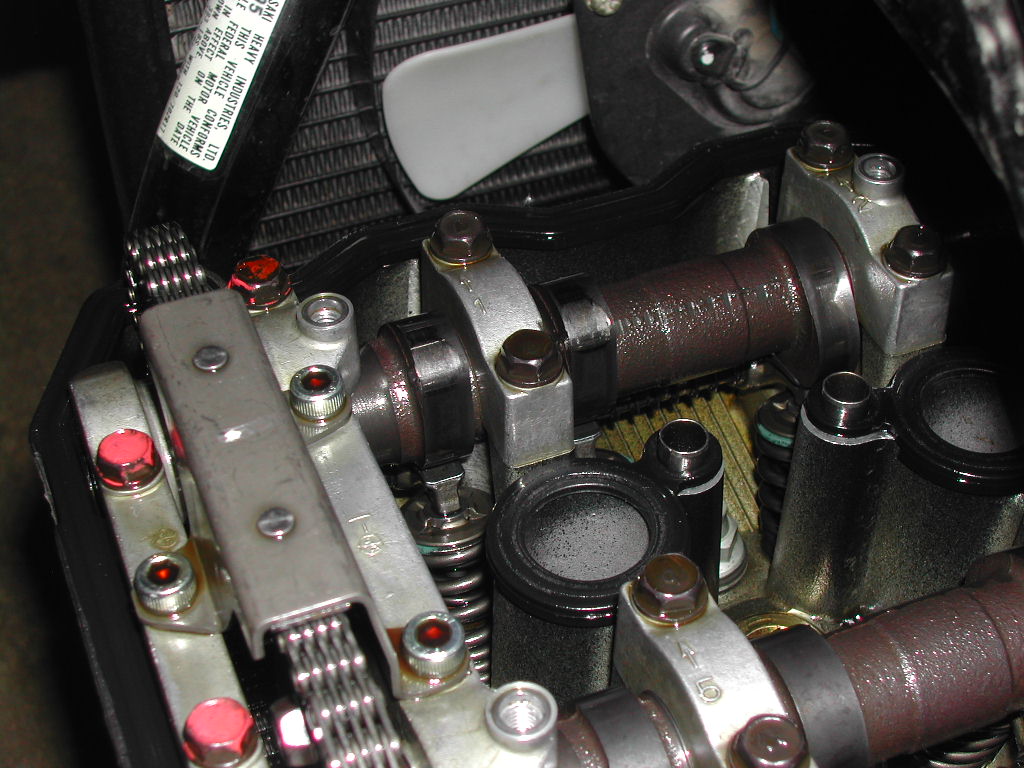

I think the dowl pins are what the small ring of the plug hole gaskets
go around.  see photo attached ( I hope it worked).  they help hold the
plug hole gaskets in place.  they are never removed.

there's no tighteing pattern mentioned in the book.  I think Mike was
just referring to standard cover tightening procedure.  I start at the
middle and work my way out in a spiraling/crossing pattern to the outer

Art in DM

Jeffrey Markham wrote:
> Thanks for the reply Michael. I took a look at my factory service manual and noticed two things:
> 1. It doesn't make mention of any tightening pattern, it just says to tighten the valve cover bolts to 87 in/lbs. Which I did. Does your manual show a tightening pattern...if so, what page is it on?
> 2. It also mentions the installation of the Head Cover Gasket, the Plug Hole Gaskets, and the Dowel Pins. I know what the first two are, but what are dowel pins? I certainly didn't notice or remove any dowel pins when I removed the valve cover the first time.
> Thanks,
> -Jeff
> Jeffrey R. Markham
> Digital Designer
